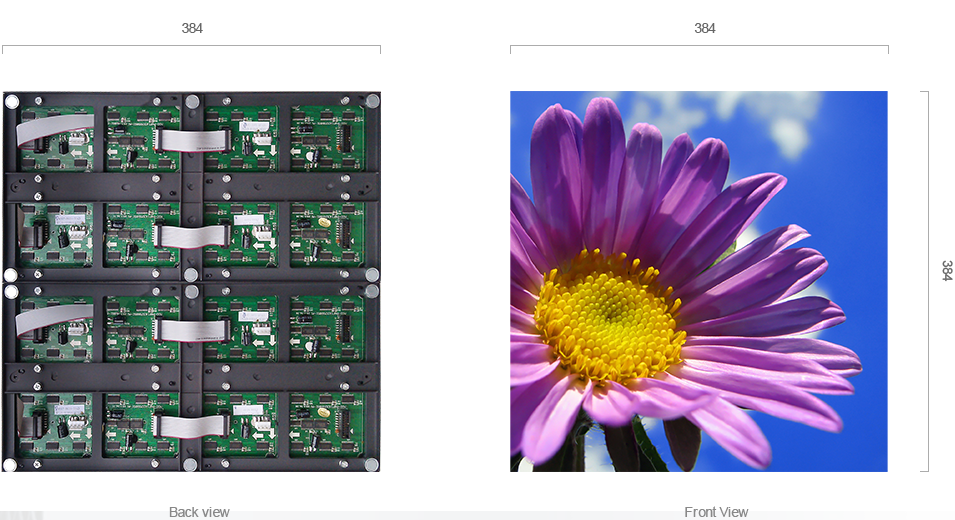

Cabinet Size
fixed LED display
Standardization

Use standardized modules,quick and easy installation fast shipment

fixed LED display
Seamless Splicing ,fine adjustment

High precision standard cabinet,seamless splicing between cabinets

china led display
Specifications
Model V03 V04
Pixel Pitch(mm) 3 4
Brightness(nits) 1000 1000
Refresh Rate(hz) 1920 1920
Module Dimension(mm 192*192*10.5 256*128*14.5
Cabinet Size(mm) 384*384*25.1 384*384*25.1
Cabinet weight(kg) 5 5
Cabinet Material Iron sheet metal Iron sheet metal
Pixel Density  Pixel/㎡ 111111 62500
Power Comsumption(Max/Aver) w/㎡

600/270

750/260
Control Distance Cat-5 Lan cable:<1000m;single -mode fiber cable :<10kilometer

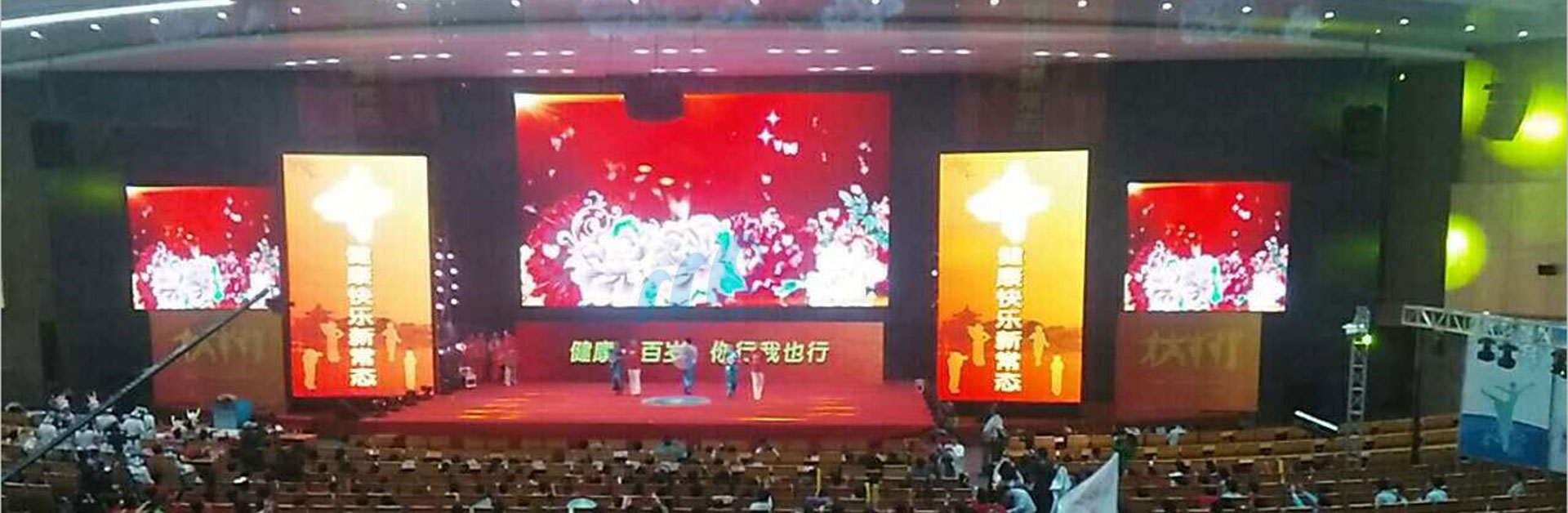

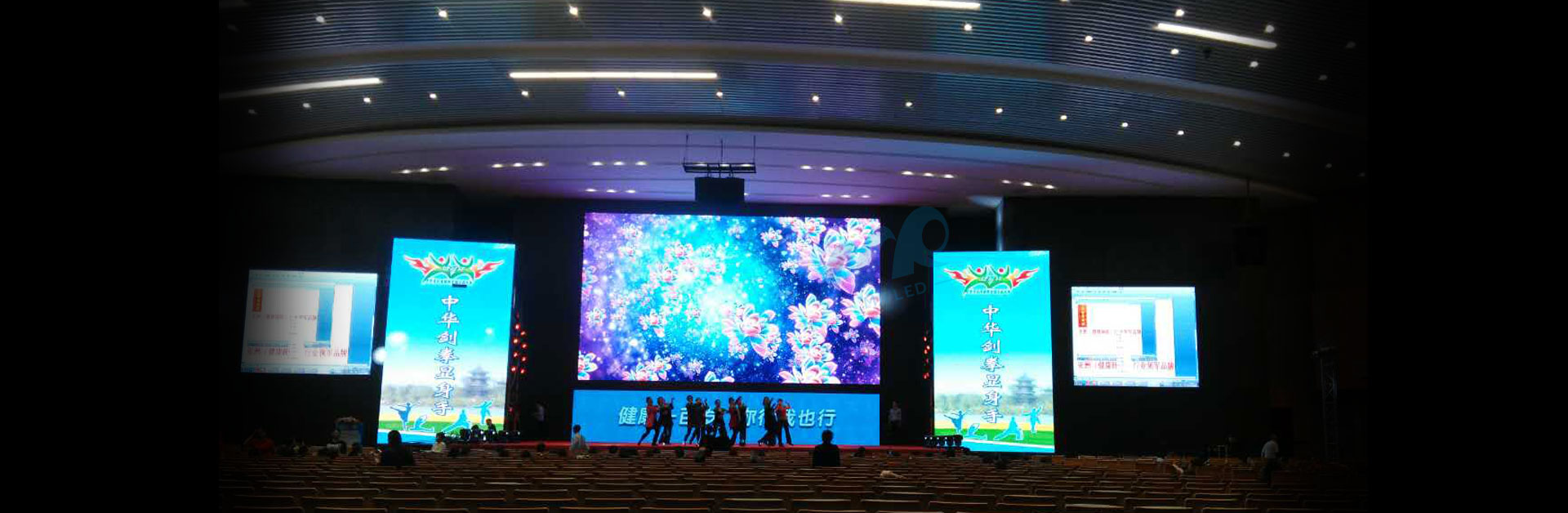

Projects case
